Turnkey Mechanical Fabrication

Turnkey Mechanical Fabrication

25000000 INR/Unit

Product Details:

X

Turnkey Mechanical Fabrication Price And Quantity

  • 25000000 INR/Unit
  • 1 Unit

Turnkey Mechanical Fabrication Trade Information

  • 1 Unit Per Month
  • 1 Months

Product Description

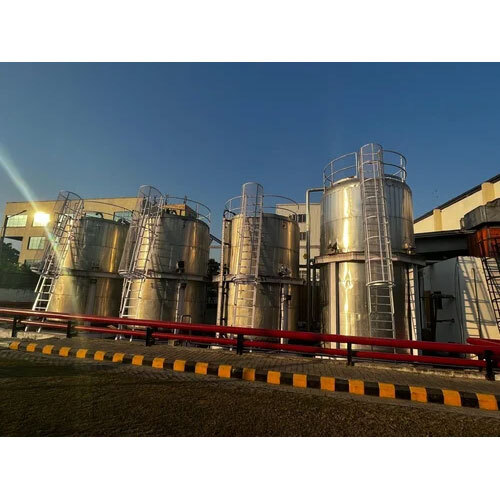

Tanks, Vessel and Piping Fabrication

Integro is a custom fabricator, highly experienced in building steel storage tanks in both the shop and field. Our plant is fully equipped with advanced engineering and manufacturing tools. Our products are used throughout the process industry that includes Food, Pharma, Adhesive & Sealant, Battery, Chemical, Edible oil, Cosmetics and Personal care.

Integro is committed to meet all specialized application needs. We have invested into custom stainless steel fabrication by dedicating both a design team and the manufacturing resources to develop custom products for the specialized applications of our customers.

Specifications

Types :

Single or double wall (jacketed) with heat transfer surfaces including dimple jacket.
Half pipe and internal pipe coils.(limpet coil)
Agitator System
Reactors
Heat Traced tanks
Insulated tanks

Capacity :

Upto 100KL Shop built, above 100KL field fabricated

MOC/finish :

SS 304, 304L, 316 with mil finish /high polish
MS with or without lining.

Media :

Stationary/Transportable

Working position :

Horizontal/Vertical

Tank Shell Geometry :

Cylindrical/Square

Head/Bottom Geometry :

Conical
Domed
Flat

Tank Features :

Single/Double Wall
Insulated/ non insulated
Leak Detectors (optional)
Level Indicating System
Overflow Vents
Manways (top/side)
Temperature Sensors (optional)
Top Access and top railing
Vented

Process Heating Turnkey Projects

Integro Specializes in process heating projects which covers
  • Heated tanks
  • Heated pipeline
  • Heated pumps, filters and other system equipments

Integro's in-house engineering team designs and fabricates the most efficient and technologically advanced process systems available today. Dedicated project managers oversee our full-time field installation crews to ensure we deliver the highest quality workmanship while meeting highest design standards and safety regulations

Integro fabrication services include:
  • Complete design and total process engineering from conceptual study to finished fabrication drawings, including electrical, control instrumentation and programming.
  • Exacting fabrication, including all parts necessary to integrate a system component or operate as a self contained unit
  • Programming and controls designed to customer specifications
  • Testing and Start-up services by Integro technicians to ensure proper operation
  • Training by Integro technicians so you can monitor and maintain your systems
Integro's Bouquet of Offerings For Process Industry Also Covers:
  • Design & Detail Engineering
  • Drawing & Drafting Services
  • Sourcing of Technology & Equipment
  • Techno-commercial Appraisal of Process & System
  • Feasibility Studies & System Development
  • Plant Engineering & Utilities Services
  • Turnkey Project Consultancy for Process Industries
  • Planning, Scheduling & Project Management
  • Equipment Selection, Sourcing & Procurement
  • Site Engineering Services
  • Commissioning & Plant Start-up

Technical Specifications


Technology

Latest

Material

As Per Requirement

Product To Be Fabricated

Tanks, Vessels, Industrial Piping, Electrical , Mechanical & Instrumentation

Industry/Application

Food, Pharma, Power , O&G

Number Of Units

As Per Requirement

Service City

Pan India, East Africa, Uae
