Single Metallic Drum Heater

Name: Single Metallic Drum Heater
Brand: INTEGRO ENGINEERS PVT. LTD.
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Single Metallic Drum Heater Specification

Usage & Applications
Heating, maintaining viscosity, or melting contents (oils, chemicals, adhesives, bitumen, food products, etc.) in metal drums

Type
Single Metallic Drum Heater

Material
Mild Steel (MS) and Stainless Steel (SS) options

Capacity
Fits standard 200L Drum

Voltage
220-240V AC

Power
1000W to 3000W (customizable)

Power Source
Electric

Input Voltage
220-240V

Output Voltage
Variable, depends on thermostat setting

Installation Type
Clamp/Band Mounted on Drum

Dimension (L*W*H)
Diameter to fit standard 200L / 55 Gallon drum; Band width: 100mm-200mm

Weight (kg)
6-8 Kg (approx)

Color
Silver metallic or custom

Drum Compatibility
Suitable for steel drumscustom options for plastic drums

Safety Features
Over-temperature cut-off, earthing

Connection Type
Plug-in with industrial socket (custom options available)

Cable Length
Typically 1.5 meters (customizable)

Heater Type
Band Heater, Metallic Construction

Thermostat Control
In-built adjustable thermostat with external dial

Surface Treatment
Corrosion resistant coating

Temperature Range
Ambient to 300C (adjustable)

Insulation
Mineral wool insulation

Single Metallic Drum Heater Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Day

Delivery Time
1 Days

About Single Metallic Drum Heater

Our Drum Heater - For Single Metallic Drum Heating is designed to offer practical & efficient means of freeze protection, viscosity control & easy to maintain in elevated temperatures. It maintains the temperature of different types of pails and drums whose fluid require maintenance and it is very important to keep them in fluid condition. It prevents the sensitive material from scorching or degrading. Apart from its functionality, this Drum Heater - For Single Metallic Drum Heating is made of CRCA/SS, and strong construction. Uniform heating, trouble free functionality, low maintenance are some of the features of our product.

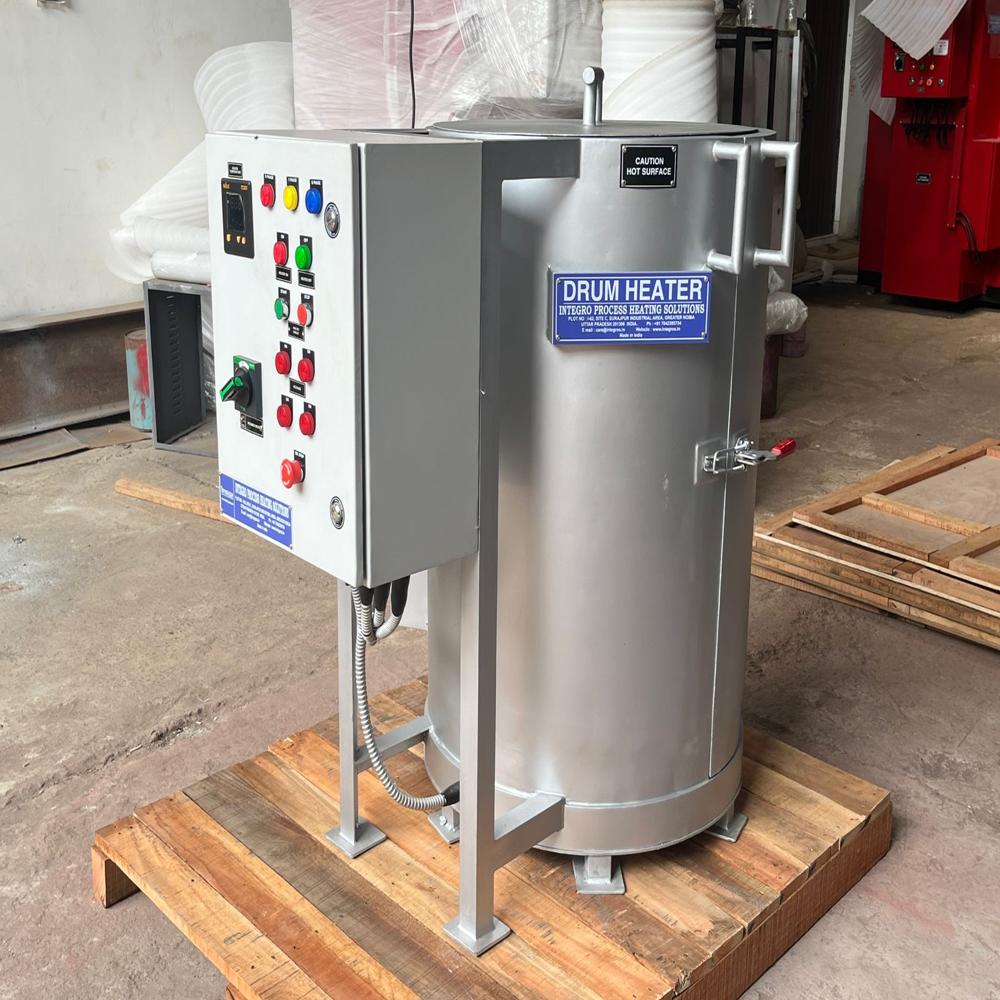

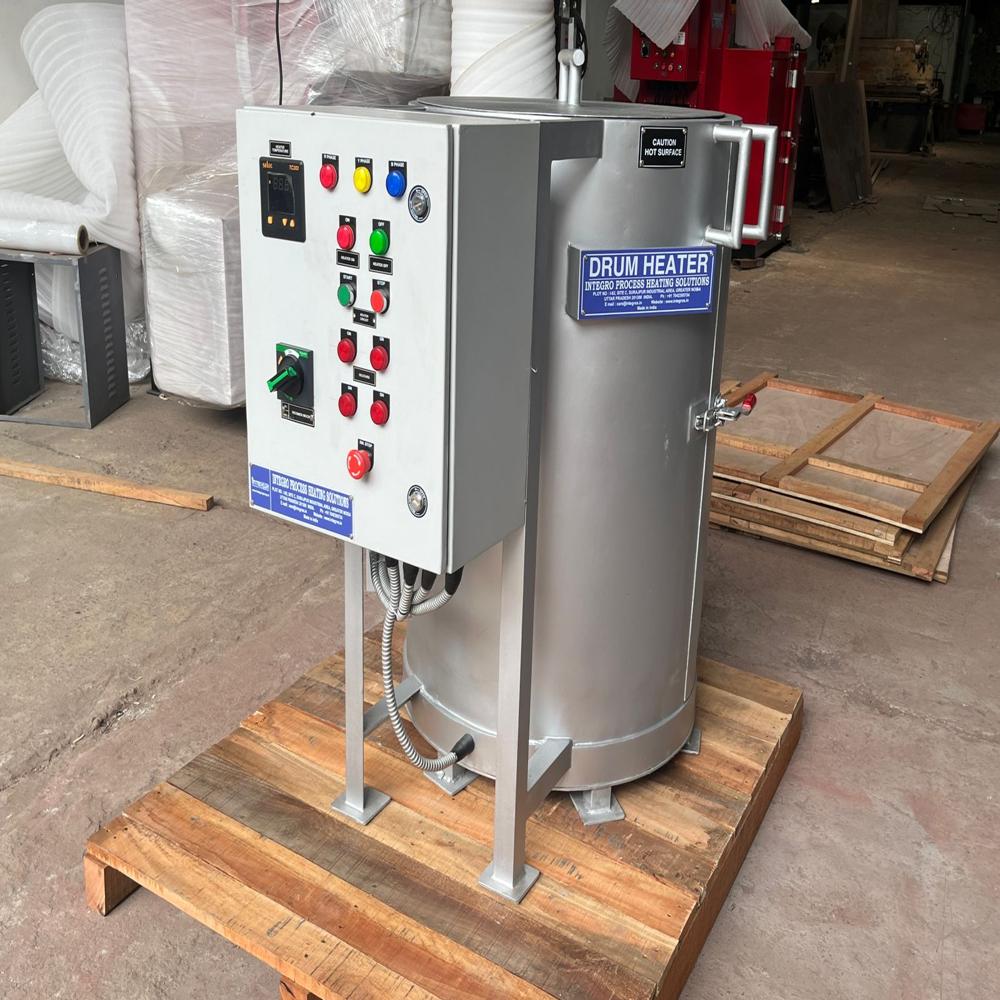

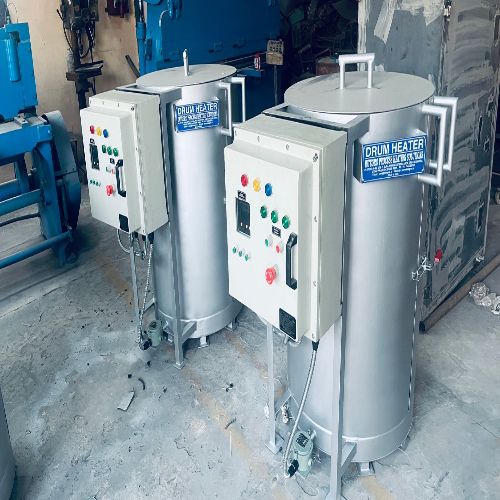

Construction

Outer structure is made of CRCA/SS, cylindrical in shape and rugged construction. Pad type flexible heater having 80/20 nichrome wire as heating element is used. 50mm thick thermal insulation is provided to prevent the heat loss and to ensure that the outer structure of the drum is at low temperature for safe handling. Lid is provided to prevent the heat loss from the top. Castors are provided in the bottom for easy handling.

Features

Uniform heating, highly efficient, low maintenance, precise temperature control, mechanically strong, coated with high temperature paint for CRCA construction.
Complete stainless steel units are also available and are highly recommended for use in corrosive areas, food and pharma applications.

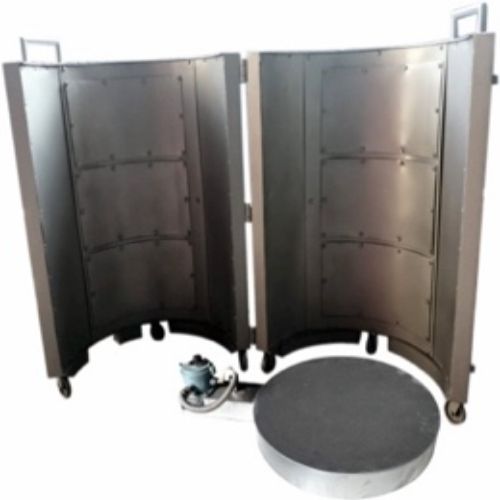

Base Heater (Optional)

Technical Specification

Frequency	50 Hz
Voltage	220-415 V
Heater Material	SS
Power	13 kW
Capacity	100-500 ltr
Temperature	30-150 Degree C

Efficient Drum Heating for Industrial Applications

This heater is engineered to deliver reliable and uniform heat distribution for steel drums holding oils, chemicals, or viscous substances. Its corrosion-resistant metallic build, combined with precise thermostat control and robust safety features, makes it suitable for rigorous industrial or laboratory environments.

User-Friendly Operation and Installation

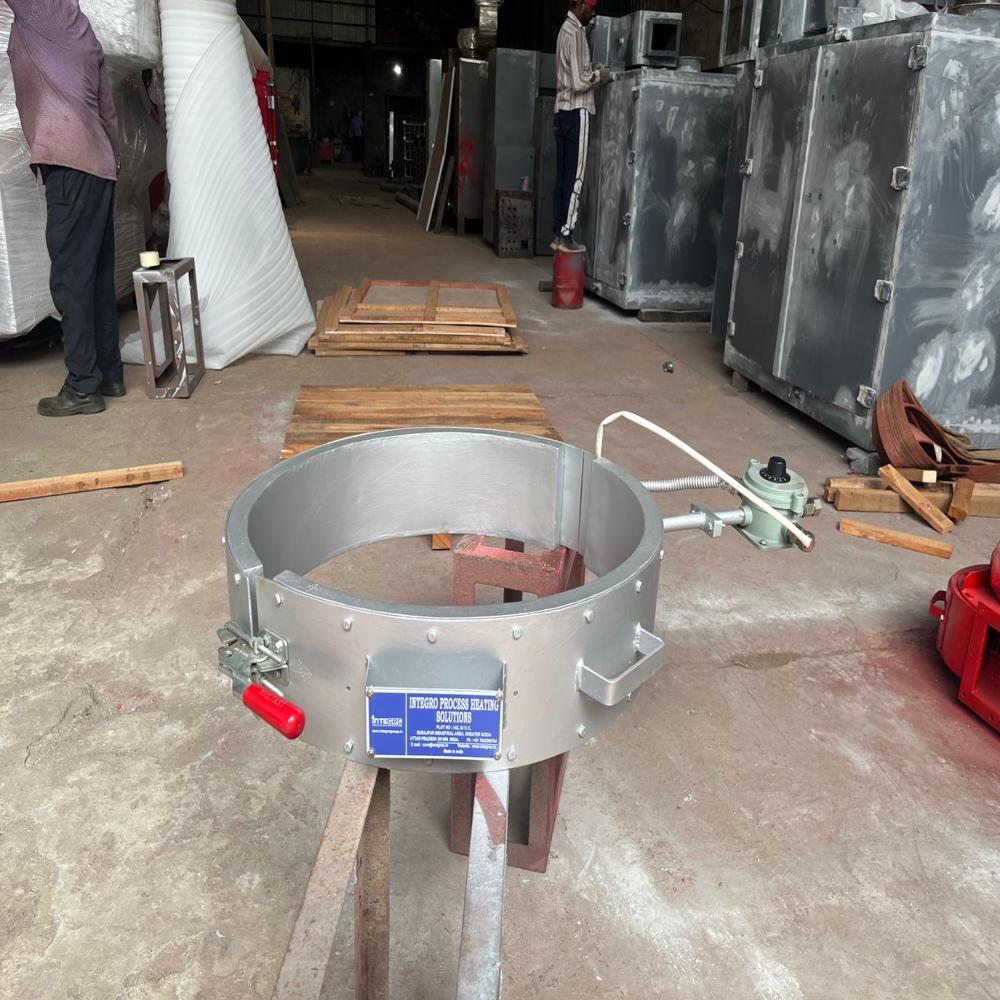

Installation is straightforward due to the clamp/band-mount design that fits standard 55-gallon drums. The external dial enables users to easily set and adjust temperatures, which can be monitored and maintained thanks to the advanced thermostat and built-in cut-off features.

FAQs of Single Metallic Drum Heater:

Q: How is the Single Metallic Drum Heater installed on a steel drum?

A: This drum heater is designed to be clamp or band mounted directly onto standard 200L (55-gallon) steel drums. Installation involves wrapping the heater securely around the drum and fastening it with the provided clamps for stable and efficient heating.

Q: What safety features are included with the drum heater?

A: For user safety, the heater is equipped with over-temperature cut-off, earthing, and mineral wool insulation. These safety features minimize the risk of overheating, electrical hazards, and surface burns during operation.

Q: When should I use a metallic band heater for drum heating?

A: Metallic band heaters are ideal whenever you need to heat, melt, or maintain the viscosity of materials such as chemicals, bitumen, food products, adhesives, or oils stored in steel drums. They ensure consistent temperature control and efficient heat transfer for industrial processes.

Q: Where can this drum heater be used?

A: The Single Metallic Drum Heater is suitable for use in factories, chemical processing plants, food production facilities, and any industrial or export-oriented setting that requires uniform heating of drum-stored contents.

Q: What materials are supported, and can the heater fit plastic drums?

A: By default, the heater fits standard steel drums but custom options are available for plastic drums. Please consult the manufacturer for compatibility and customization requests.

Q: How does the adjustable thermostat enhance the heating process?

A: The in-built adjustable thermostat with an external dial enables precise temperature control in the range of ambient to 300C, allowing users to customize heating profiles suited to the applications needs.

Q: What are the primary benefits of using this drum heater?

A: Key benefits include rapid and uniform heating, energy efficiency due to high-quality insulation, customizable settings for voltage and power, and robust safety measures, all of which contribute to enhanced productivity and process reliability.
